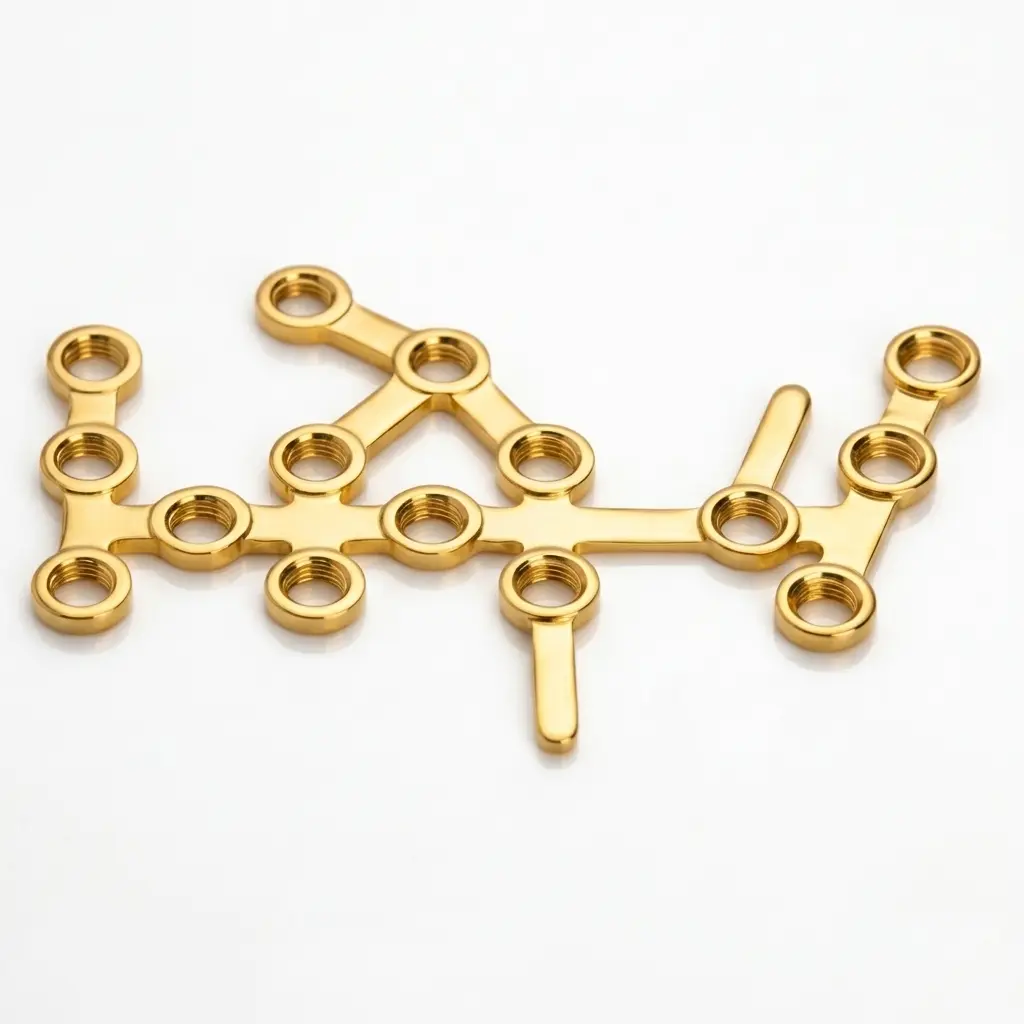

The Calcaneus Locking Plate is an orthopedic implant that surgeons use to fix calcaneal fractures through internal fixation. The calcaneus, or heel bone, plays a central role in weight-bearing and lower limb movement. Because this bone is so important to foot function, surgeons need a reliable plate that supports stable fixation across a range of fracture types. This plate suits extra-articular, intra-articular, joint depression, tongue-type, and multifragmentary fracture patterns. Surgeons apply it to the lateral side of the calcaneus, where it provides a fixed-angle construct to support the articular surfaces.
Key Features
The plate offers several practical advantages for calcaneal fracture fixation:
- Four size options with left and right configurations to match patient anatomy
- Threaded locking holes that accept both locking and cortical screws for flexible fixation
- A fixed-angle construct that helps stabilize multiple fracture fragments
- Non-sterile supply; surgeons can autoclave the plate before use
- Manufactured under ISO 13485 quality standards and CE marked for compliance
Sizes and Configuration
The plate comes in four lengths, and each size is available in a left and right version:
| Size | Length |
|---|---|
| Extra Small | 64 mm |
| Small | 69 mm |
| Large | 76 mm |
| Extra Large | 81 mm |
Surgeons should select the correct size and side based on the patient’s anatomy and the planned surgical approach.
Compatible Screws
This calcaneal locking plate works with three screw types, so surgeons can adapt fixation to the fracture pattern and bone quality:
- 3.5 mm Locking Screw — locks into the threaded holes to create a fixed-angle, stable construct
- 3.5 mm Cortex Screw — supports conventional cortical fixation where variable-angle placement is preferred
- 2.7 mm Cortex Screw — works well for smaller or more distal bone fragments where a finer diameter is appropriate
Material and Technical Specifications
| Attribute | Detail |
|---|---|
| Material | Premium German stainless steel / Titanium |
| Screw Compatibility | 3.5 mm Locking Screw, 3.5 mm Cortex Screw, 2.7 mm Cortex Screw |
| Sterility | Non-sterile, autoclavable |
| Standards | ISO 13485, CE Marked |
The plate uses premium German stainless steel or titanium. Both materials have a long track record in orthopedic implant use. Surgeons or procurement teams can choose the material that best fits their clinical or institutional preference.
How to Select the Right Plate
To choose the correct calcaneal fracture fixation plate, first confirm the required length from the size chart above. Then select the correct side — left or right — based on the patient’s anatomy. Finally, confirm screw compatibility with the intended fixation plan before ordering.
