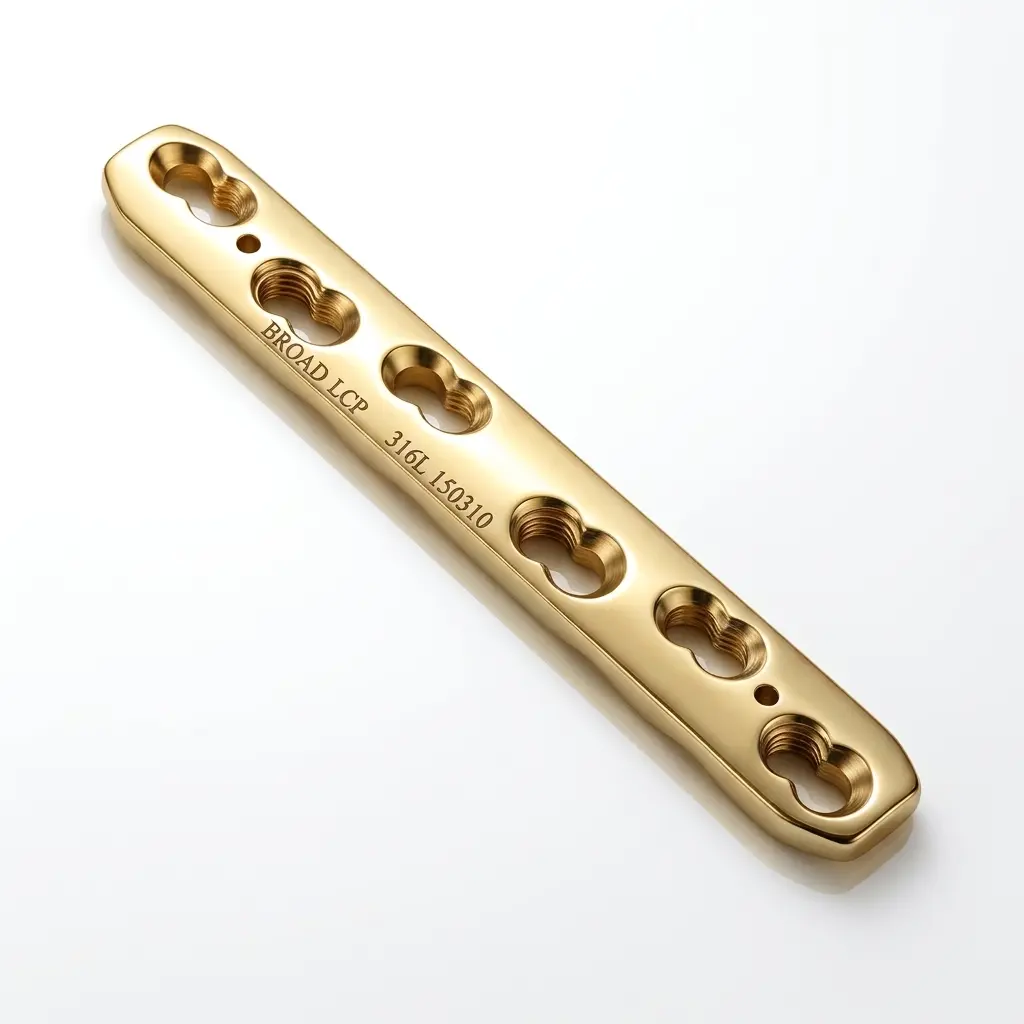

The Broad Locking Compression Plate (LCP) is an orthopedic implant for internal fixation of long bones. Its wider profile suits larger bone segments, and it comes in a wide range of sizes and hole configurations to meet varying fixation needs.
Design and Construction
Each hole in the Broad Locking Compression Plate uses a combination (combi) hole design. One side of the hole accepts conventional cortex screws for axial compression. The other side is threaded to grip locking head screws, which lock directly into the plate to create a fixed-angle construct. This lets the surgeon apply conventional screwing, locking, or both within the same plate — depending on what the case demands.
The plate’s undersurface also reduces direct contact with the bone shaft.
Material Options
Sami’s Instruments offers the Broad Locking Compression Plate in two materials:
- German stainless steel
- Titanium
Available Sizes
1.5 mm · 2.0 mm · 2.4 mm · 2.7 mm · 3.0 mm · 3.5 mm · 4.0 mm · 4.5 mm · 5.0 mm · 5.5 mm · 6.0 mm · 6.5 mm · 7.0 mm · 7.5 mm · 8.0 mm
Available Hole Configurations
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, and 20 holes
Choosing the Right Configuration
Size and hole count together determine how well a plate fits the target bone and fracture span. Fewer holes cover shorter segments. More holes extend coverage across longer ones. Plate size also sets the compatible screw diameter and overall plate width. Surgeons and procurement teams can use these options to match the plate to their specific case.
The Broad Locking Compression Plate ships in multiple sizes, hole counts, and two material options — giving distributors, surgical facilities, and medical buyers a flexible sourcing range.
