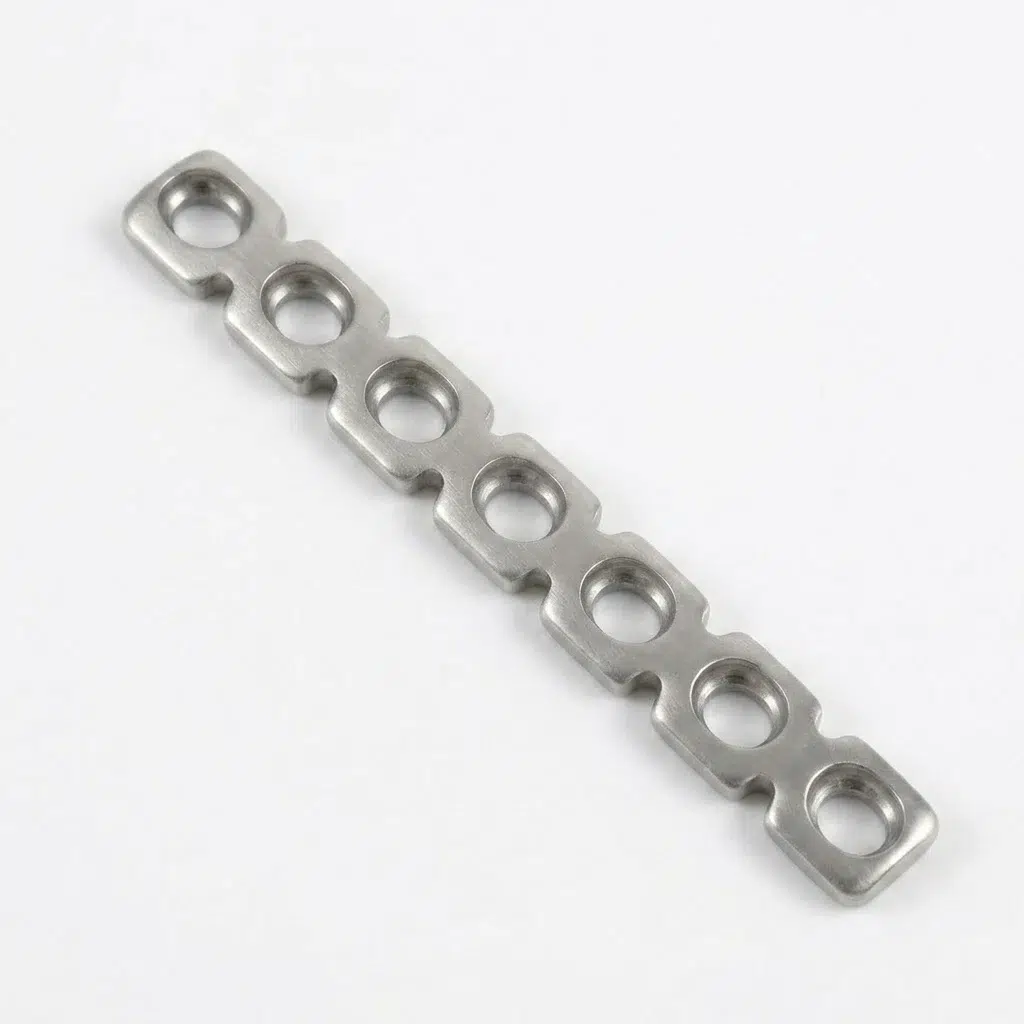

Reconstruction Plate — Round Hole
The Reconstruction Plate is a round-hole orthopedic fixation plate designed for surgical procedures that require reliable bone stabilization. Surgical teams typically pair this orthopedic fixation plate with 3.5mm cortical screws, which makes it a dependable option whenever a reconstruction fixation plate suits the case.
We manufacture this round-hole fixation plate in two material options, so surgical teams can choose based on preference and case requirements:
- Premium German Stainless Steel
- Titanium
Every plate comes complete with 3.5mm cortical screws, so the set is ready to use without sourcing screws separately. In addition, customers can select their required screw size, and we can adjust the plate-and-screw configuration to match specific surgical requirements — giving you flexibility for varied fixation needs.
Key Features
- Round-hole design for standard plate-to-screw fixation
- Compatible with 3.5mm cortical screws
- Available in Premium German Stainless Steel or Titanium
- Screws included with every plate
- Configurable screw size and plate/screw setup on request
- Wide range of hole counts and lengths for different fixation spans

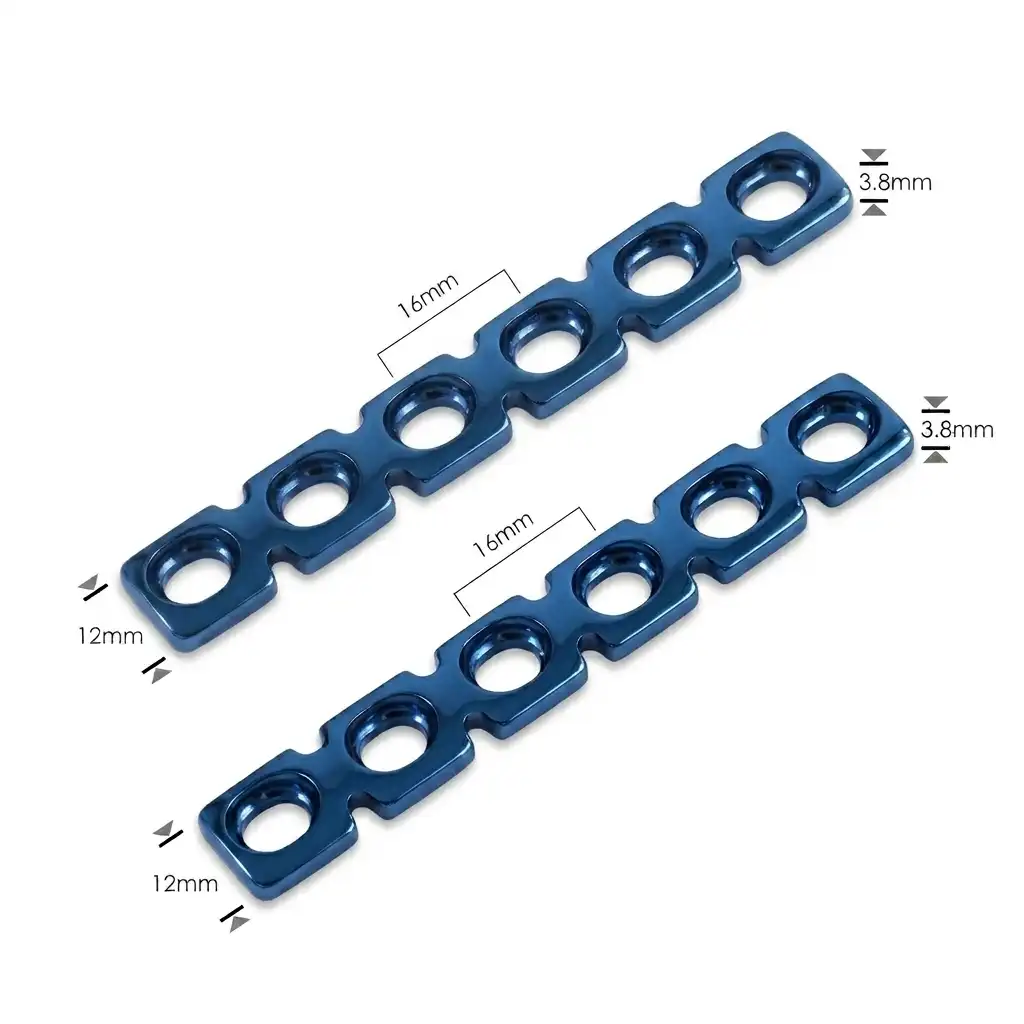

Available Sizes
| Holes | Length |
|---|---|
| 4 | 70 mm |
| 5 | 58 mm |
| 5 | 70 mm |
| 6 | 70 mm |
| 7 | 82 mm |
| 8 | 94 mm |
| 9 | 106 mm |
| 10 | 118 mm |
| 11 | 130 mm |
| 12 | 142 mm |
| 13 | 154 mm |
| 14 | 166 mm |
| 15 | 178 mm |
| 16 | 190 mm |
| 18 | 214 mm |
| 20 | 238 mm |
| 22 | 262 mm |
Overall, this reconstruction plate gives surgeons a straightforward, adaptable fixation option across a broad range of hole counts and lengths, whether they use it as a plate for orthopedic fixation in trauma cases or in general reconstructive procedures.
Quality Assurance: Samis Instruments products are manufactured under ISO 13485 quality management standards and CE compliance guidelines, and are registered with the Sialkot Chamber of Commerce. View our certifications.
