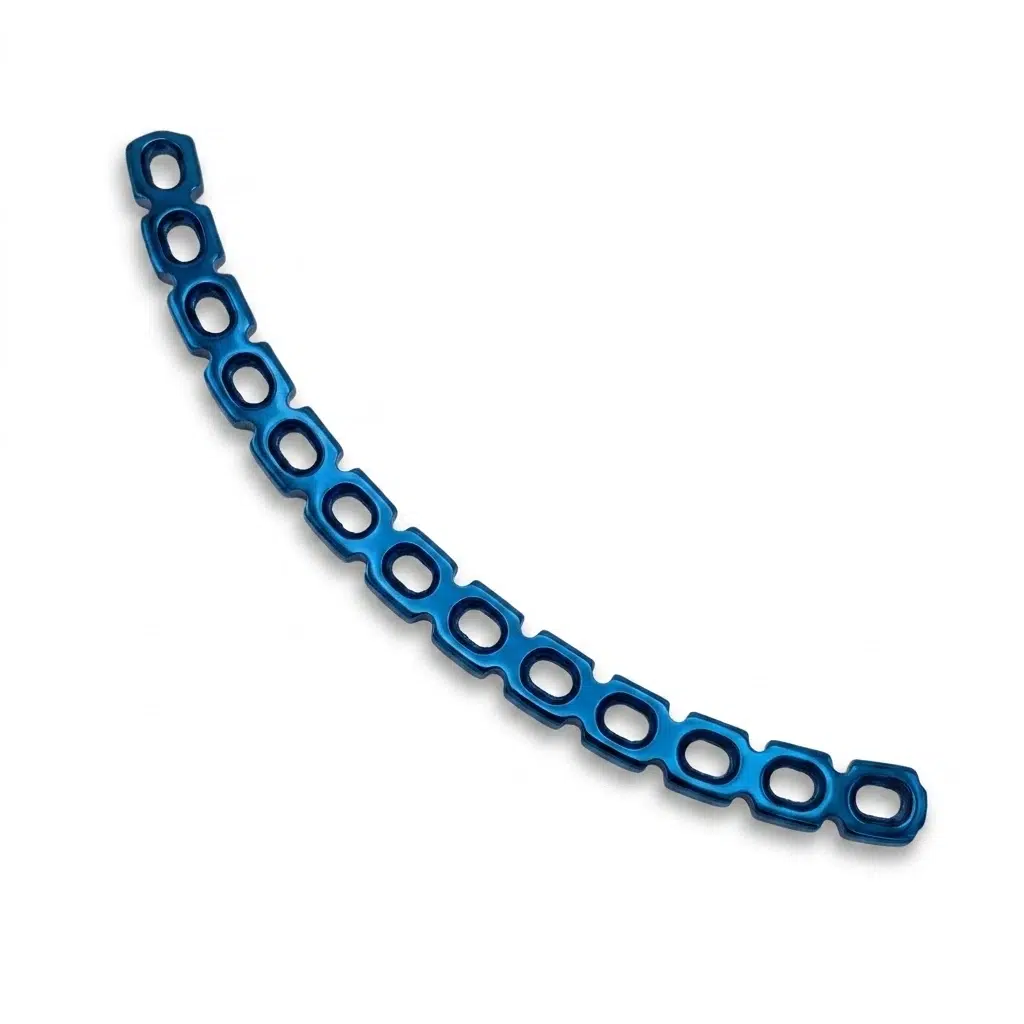

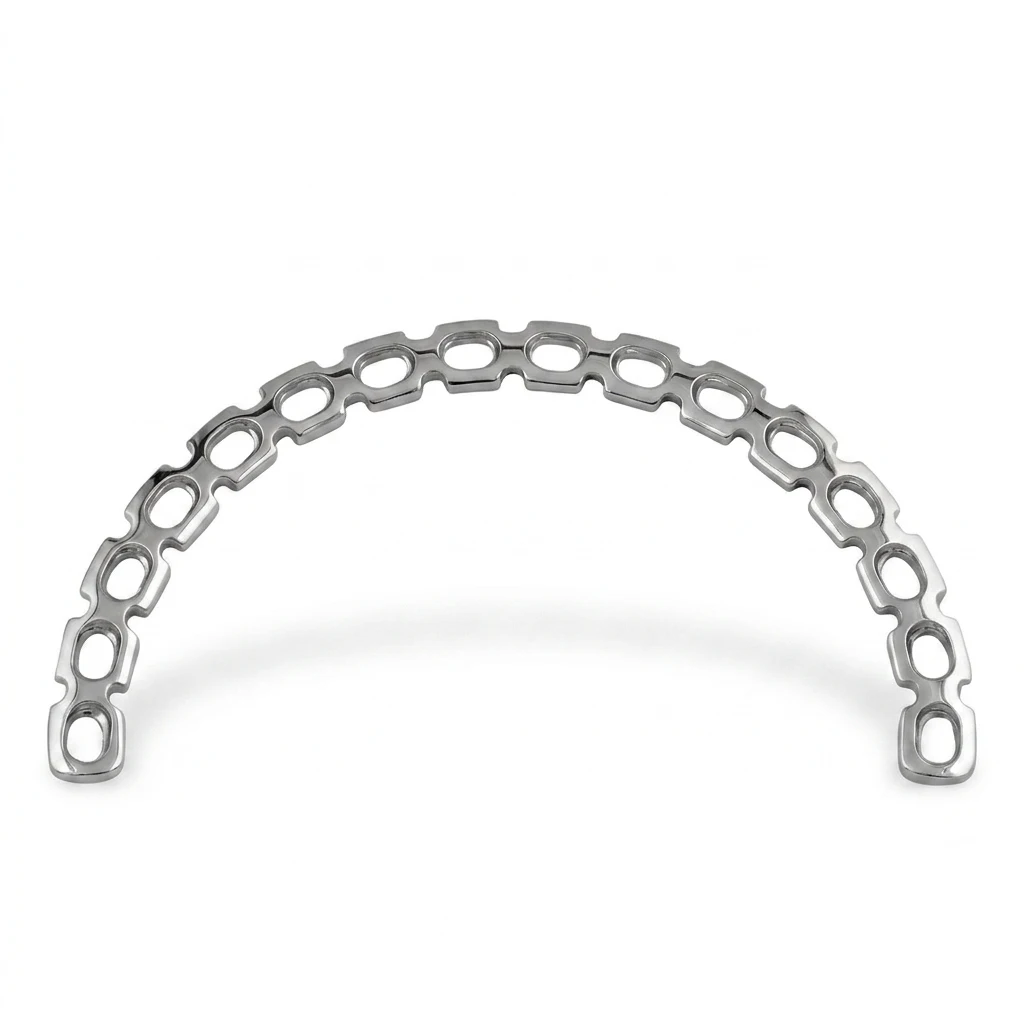

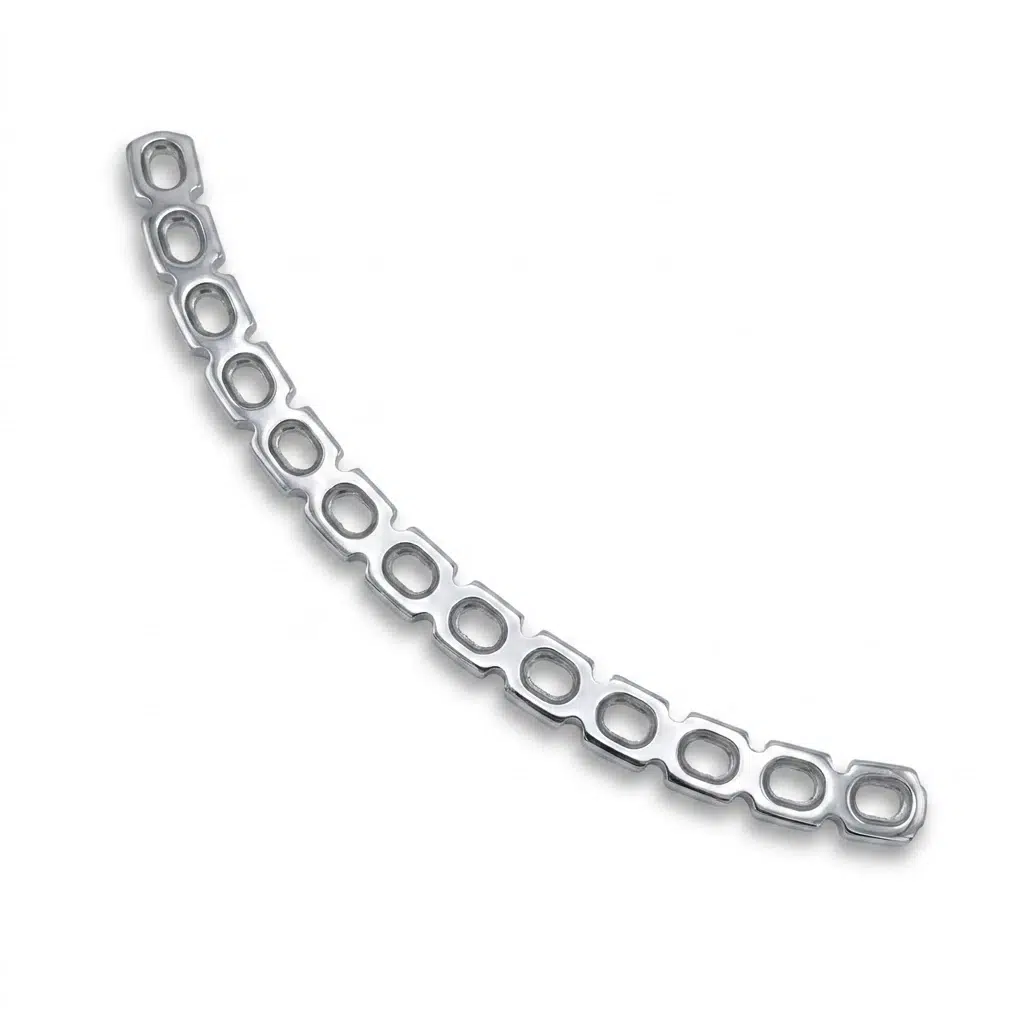

The Reconstruction Curved Plate is an orthopedic fixation implant that supports fracture stabilization and bone reconstruction in curved or anatomically irregular regions. Because it features a series of contouring notches along its length, surgeons can bend and shape this curved plate to closely follow the natural curvature of the bone. As a result, it offers a practical option in cases where a straight plate would not fit properly.
We manufacture the plate from premium German stainless steel or titanium, giving it strength and biomechanical reliability while keeping it adaptable to each case’s specific requirements.
Key Features
- Curved reconstruction design that allows multi-directional contouring
- Notched construction that improves bending flexibility
- Available in German stainless steel and titanium
- Compatible with 3.5 mm cortical screws
- Wide range of hole configurations to suit different bone lengths
- Screws included with the plate
Specifications
Material options: Premium German stainless steel, titanium
Hole configurations and approximate lengths:
| Holes | Approx. Length |
|---|---|
| 4 Hole | 58–60 mm |
| 5 Hole | 70 mm |
| 6 Hole | 78–82 mm |
| 7 Hole | 94 mm |
| 8 Hole | 106 mm |
| 9 Hole | 118 mm |
| 10 Hole | 123–130 mm |
| 12 Hole | 144–154 mm |
| 14 Hole | 162–166 mm |
| 16 Hole | 179–190 mm |
| 18 Hole | Approximately 214 mm |
| 20 Hole | Approximately 238 mm |
Recommended screws: 3.5 mm cortical screws, with screw size selectable according to case requirements. We include screws with the plate.
Why This Design Is Useful
A curved orthopedic plate places contouring notches along its body so surgeons can shape it in multiple planes rather than just one direction. This matters because many bone surfaces are not flat or straight, so a plate that only bends in one direction often falls short. Once contoured, the plate maintains closer contact with the underlying bone, which in turn supports more even load distribution across the fixation points. Additionally, offering both stainless steel and titanium versions lets surgical teams choose the material that best fits their preference for weight, stiffness, and handling. Meanwhile, the broad range of hole counts means the same plate design can serve a variety of bone lengths without unnecessary cutting or modification.
Quality Assurance: Samis Instruments products are manufactured under ISO 13485 quality management standards and CE compliance guidelines, and are registered with the Sialkot Chamber of Commerce. View our certifications.
