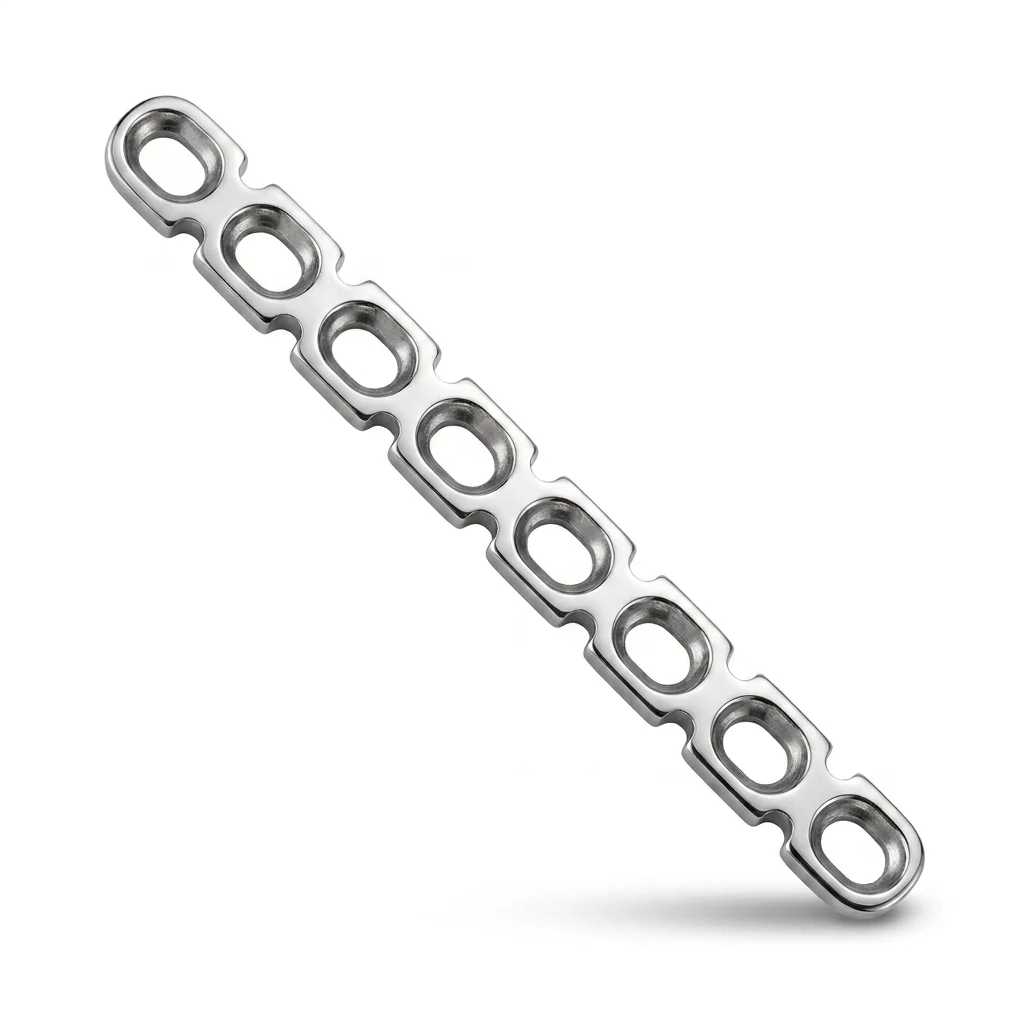

The Reconstruction Plate DC Hole is a contoured orthopedic bone plate that surgeons use for internal fixation of fractures in areas with irregular or curved bone anatomy. Its dynamic compression (DC) hole design lets surgeons place screws at an angle, so they can contour the plate along complex bone surfaces while still achieving stable fixation.
This reconstruction plate offers several practical features:
- A notched, low-profile design allows precise contouring without weakening the plate
- The DC hole configuration supports both neutral and compression screw placement
- A reduced plate-to-bone contact area helps preserve the periosteal blood supply
- Premium German stainless steel and titanium options provide durability and biocompatibility
Surgeons commonly choose this implant plate for procedures involving anatomically curved or irregular bone segments, including pelvic reconstruction, clavicle fixation, and other fracture patterns where straight plates don’t fit well. Because the plate contours to the bone, surgeons can match it precisely to the specific fracture site.
Specifications
- Material: German stainless steel or titanium
- Thickness (T): 2.8 mm
- Width (W): 10 mm
- Hole spacing (HS): 12 mm
- Hole configurations: 4 to 22 holes
- Available lengths: 70 mm to 262 mm
- Recommended screw: 3.5 mm cortical screws
Compatibility & Configuration
The plate works with 3.5 mm cortical screws, and buyers can adjust the configuration to fit the fracture pattern and surgical requirement. For example, they can select the hole count and length that best matches the intended application, ranging from a 4-hole, 70 mm option up to a 22-hole, 262 mm option.
Quality Assurance: Samis Instruments products are manufactured under ISO 13485 quality management standards and CE compliance guidelines, and are registered with the Sialkot Chamber of Commerce. View our certifications.
