Introduction
The ACL ToolBox is a comprehensive ACL instrumentation set containing the surgical instruments required for anterior cruciate ligament (ACL) reconstruction procedures. Specifically, it brings together drilling instruments, guide sleeves, femoral and tibial drill guides, graft sizing instruments, taps, screwdrivers, and related accessories into a single, professionally organized collection. In addition, the set is available in premium German stainless steel and titanium configurations, and Sami’s Instruments supplies it for use by qualified orthopedic and arthroscopic surgical professionals in clinical environments where ACL instrumentation is required.
ACL ToolBox Overview

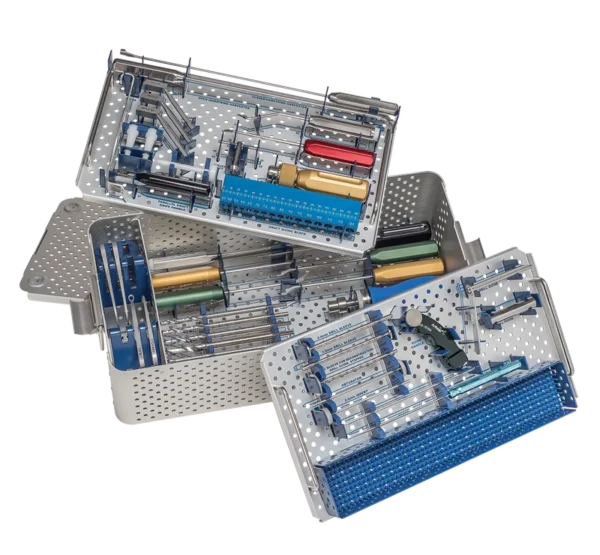

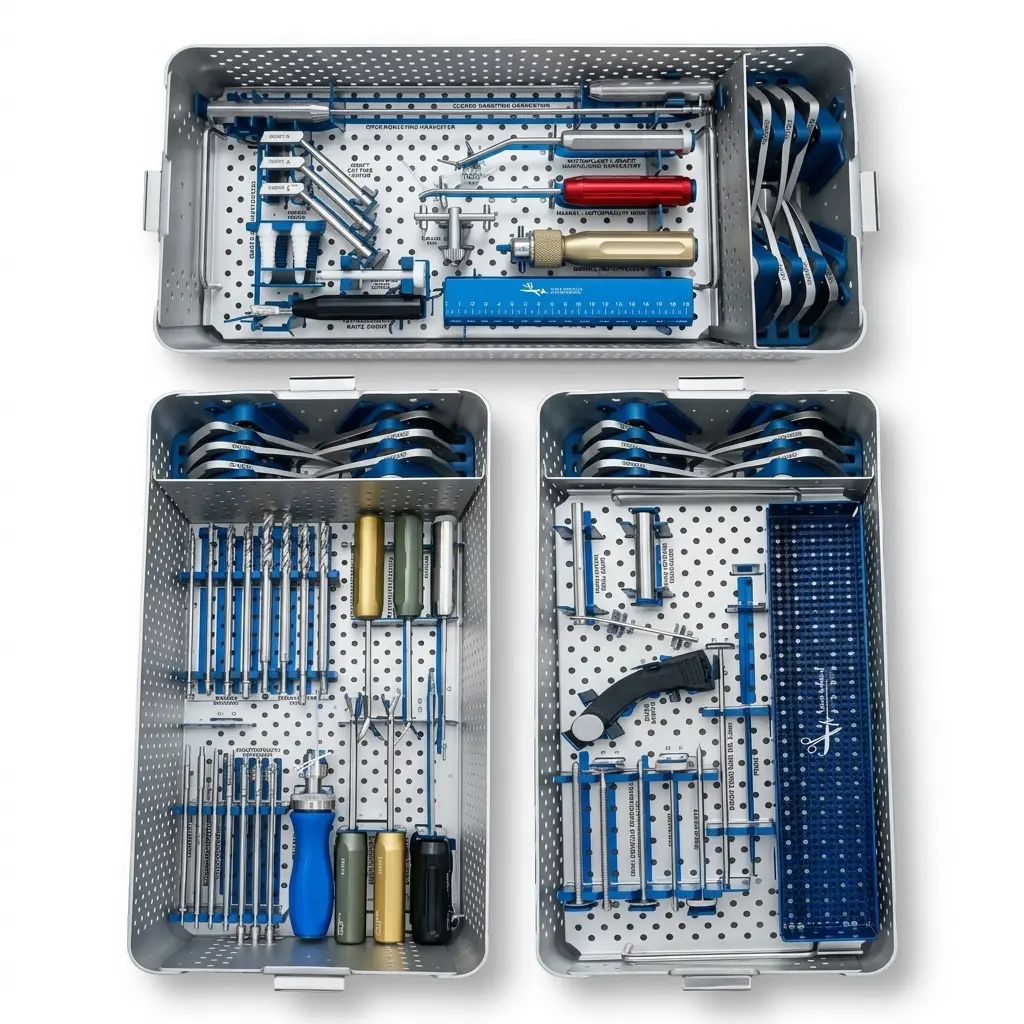

The ACL ToolBox is an organized ACL instrumentation set that consolidates the instruments used across the key stages of ACL reconstruction. As a result, facilities avoid sourcing individual items separately. The set covers instruments for tunnel preparation, femoral and tibial guide placement, graft sizing, fixation preparation, and instrument storage.
Furthermore, the set covers both transtibial and transportal surgical approaches through the inclusion of dedicated femoral ACL drill guides for each technique. Multiple drill sizes and offset options allow the set to accommodate varying anatomical requirements.
Available material configurations include:
- Premium German stainless steel — a traditional choice in professional surgical instrumentation
- Titanium — available as an alternative material option
The set also comes with a dedicated instrumentation case for organized storage of all included items.
Included Instruments
| Ref. | Instrument |
|---|---|
| SI-1452-01 | Chuck Key |
| SI-1452-02 | 2.4 mm Guide Pin Sleeve |
| SI-1452-03 | 3.2 mm Guide Pin Sleeve |
| SI-1452-04 | 4.5 mm Guide Pin Sleeve |
| SI-1452-05 | 5.0 mm Guide Pin Sleeve |
| SI-1452-06 | 8 mm Cannulated Drill |
| SI-1452-07 | 9 mm Cannulated Drill |
| SI-1452-08 | 10 mm Cannulated Drill |
| SI-1452-09 | 11 mm Cannulated Drill |
| SI-1452-10 | 6 mm ACL Transportal Guide Offset |
| SI-1452-11 | 7 mm ACL Transportal Guide Offset |
| SI-1452-12 | 6 mm Transtibial Femoral ACL Drill Guide |
| SI-1452-13 | 7 mm Transtibial Femoral ACL Drill Guide |
| SI-1452-14 | Tibial ACL Drill Guide |
| SI-1452-15 | ACL Marking Hook — Left |
| SI-1452-16 | ACL Marking Hook — Right |
| SI-1452-17 | 8.5 mm Cutting Guide |
| SI-1452-18 | 9.5 mm Cutting Guide |
| SI-1452-19 | 10.5 mm Cutting Guide |
| SI-1452-20 | Graft Sizing Block (4.5–12 mm in 0.5 mm increments) |
| SI-1452-21 | 7 mm Tap |
| SI-1452-22 | 8 mm Tap |
| SI-1452-23 | 9 mm Tap |
| SI-1452-24 | 10 mm Tap |
| SI-1452-25 | Cannulated Screwdriver Shaft — Small |
| SI-1452-26 | Cannulated Screwdriver Shaft — Large |
| SI-1452-27 | Screwdriver Handle |
| SI-1452-28 | T-Handle |
| SI-1452-29 | Straight Awl |
| SI-1452-30 | Curved Awl |
| SI-1452-31 | Notch Chisel |
| SI-1452-32 | Mallet |
| SI-1452-33 | Graft Passer |
| SI-1452-34 | ACL Instrumentation Case |
| SI-1452-35 | Guide Pin — 2.4 mm (Pack) |
| SI-1452-36 | Tibial Tunnel Dilator |
| SI-1452-37 | Femoral Tunnel Dilator |
| SI-1452-38 | Notch Osteotome |
| SI-1452-39 | Ligament Graft Tensioner |
| SI-1452-40 | Probe Hook |
| SI-1452-41 | Knot Pusher |
| SI-1452-42 | Suture Retriever |
| SI-1452-43 | Tunnel Measurement Gauge |
| SI-1452-44 | ACL Footprint Guide — Left |
| SI-1452-45 | ACL Footprint Guide — Right |
| SI-1452-46 | Femoral Aimer |
| SI-1452-47 | Tibial Aimer |
| SI-1452-48 | Instrument Case |
Key Features of the ACL ToolBox
- Comprehensive selection of ACL reconstruction instruments organized as a complete set
- Cannulated drills in 8 mm, 9 mm, 10 mm, and 11 mm sizes
- Multiple guide pin sleeve sizes for use with standard guide pins
- ACL transportal guide offsets in 6 mm and 7 mm
- Transtibial femoral ACL drill guides in 6 mm and 7 mm
- Tibial ACL drill guide with angle markings for accurate tunnel placement
- Graft sizing block covering 4.5 mm to 12 mm in 0.5 mm increments
- Cutting guides in 8.5 mm, 9.5 mm, and 10.5 mm sizes
- Taps in 7 mm, 8 mm, 9 mm, and 10 mm sizes
- Screwdriver shafts in multiple sizes for fixation instrument use
- ACL marking instruments for femoral footprint positioning
- Chuck key and handle accessories included
- Dedicated ACL instrumentation case for organized storage
- Available in premium German stainless steel or titanium
Instrument Categories
The instruments within the ACL ToolBox cover the following functional categories:
Drilling and Reaming Instruments
Cannulated drills in 8 mm, 9 mm, 10 mm, and 11 mm sizes handle tibial and femoral tunnel preparation.
Guide Sleeves and Drill Guides
Guide pin sleeves in 2.4 mm, 3.2 mm, 4.5 mm, and 5.0 mm work alongside tibial and femoral drill guides for both transtibial and transportal techniques.
ACL Marking and Positioning Guides
ACL marking hooks (left and right), ACL footprint guides (left and right), a femoral aimer, and a tibial aimer support accurate anatomical positioning during tunnel placement.
Tunnel Preparation Instruments
Tibial and femoral tunnel dilators, a notch chisel, a notch osteotome, and straight and curved awls address the tunnel preparation stage.
Graft Handling and Sizing Instruments
The graft sizing block (4.5–12 mm in 0.5 mm increments), graft passer, ligament graft tensioner, and tunnel measurement gauge support graft sizing and handling.
Tapping Instruments
Taps in 7 mm, 8 mm, 9 mm, and 10 mm prepare tunnel threads prior to fixation.
Cutting Guides
Cutting guides in 8.5 mm, 9.5 mm, and 10.5 mm provide sizing options for bone block preparation.
Screwdriver Instruments
Cannulated screwdriver shafts (small and large), a screwdriver handle, and a T-handle complete the fixation instrument group.
Accessory Instruments
The set also includes a chuck key, mallet, probe hook, knot pusher, suture retriever, and graft passer.
Instrument Cases

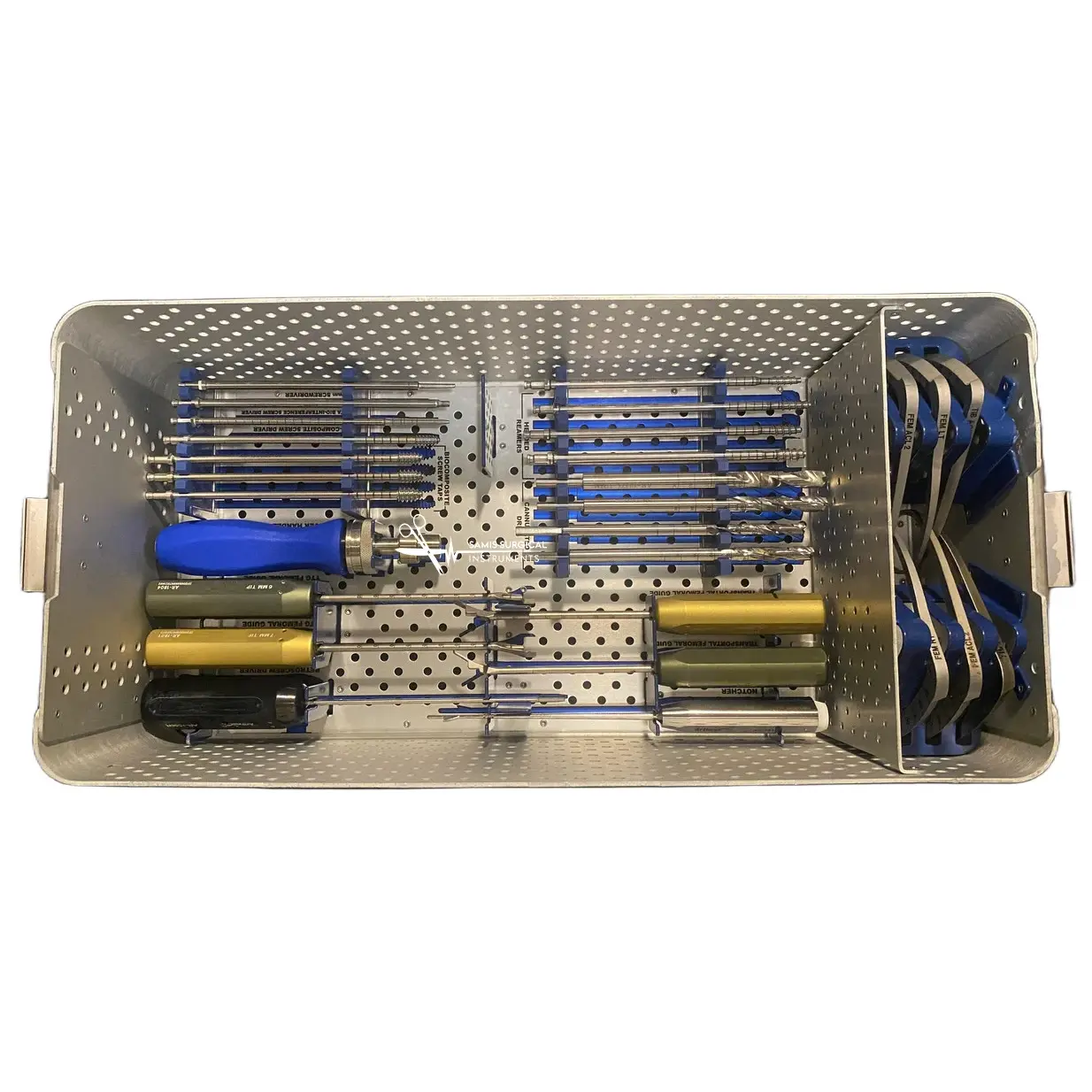

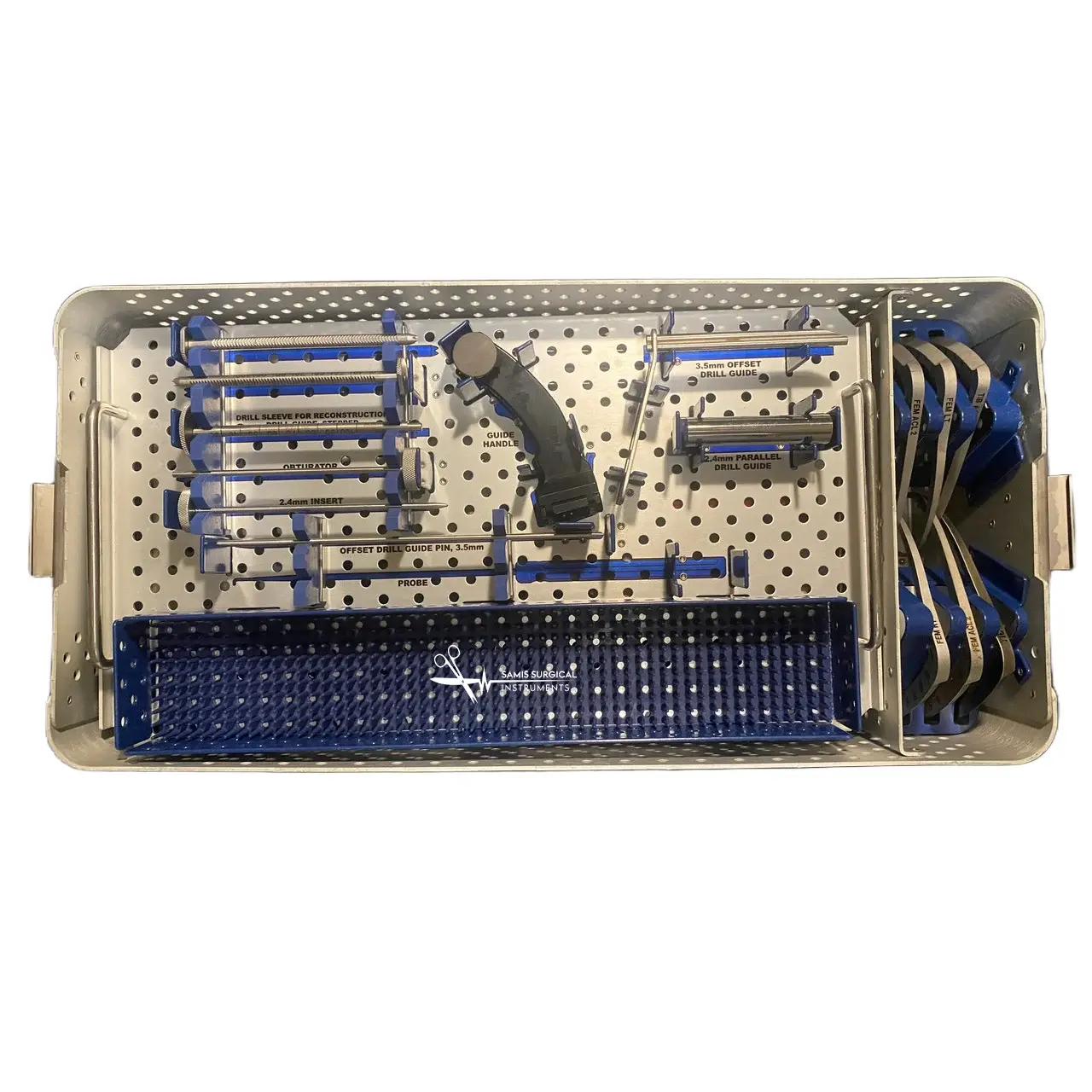

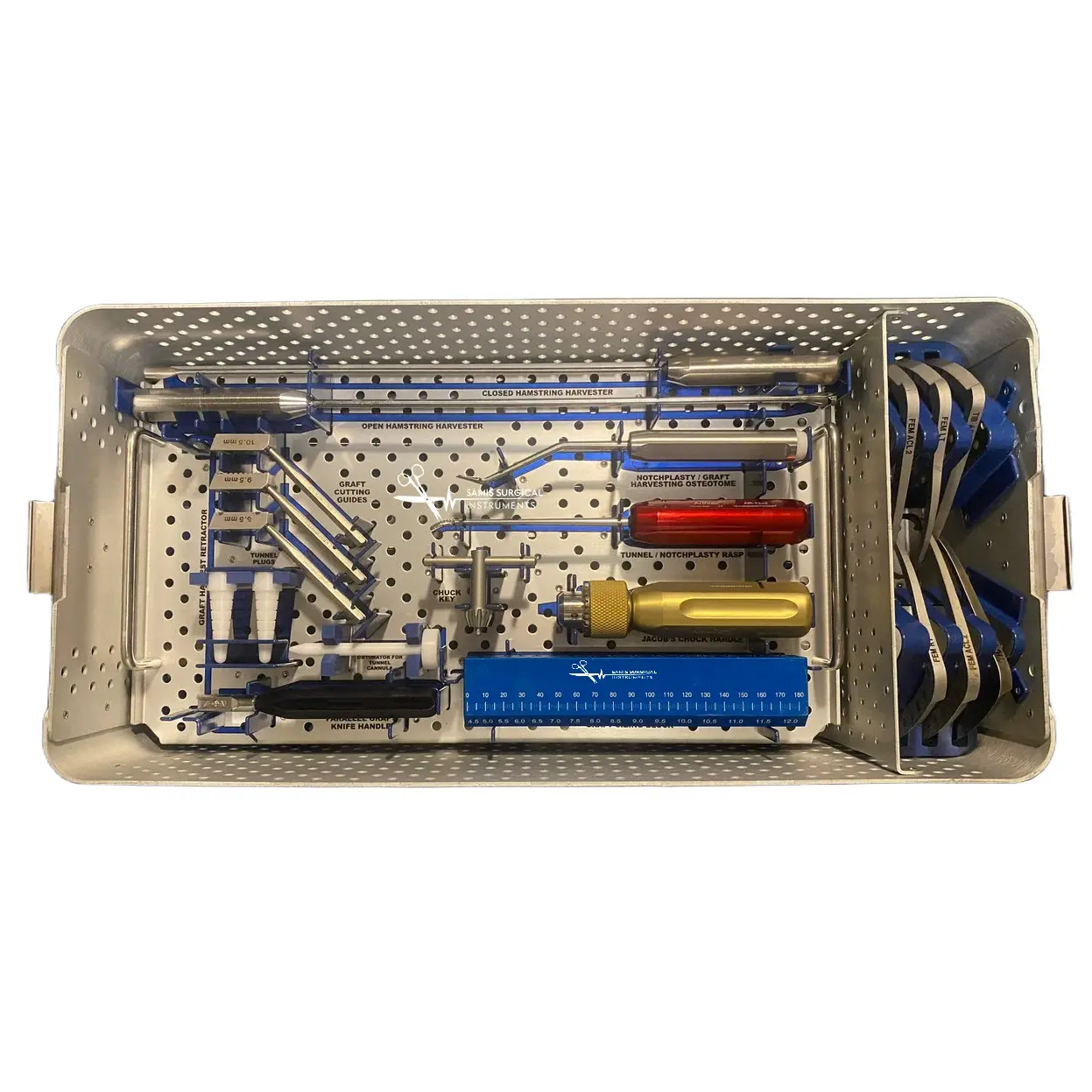

An ACL instrumentation case and an instrument case provide storage and transport for all set components.
Materials and Manufacturing Options
The ACL ToolBox is available in two material configurations.
Premium German Stainless Steel
Instruments in this configuration use premium German stainless steel, a material that manufacturers and surgical facilities widely adopt in professional instrument production.
Titanium
The titanium configuration suits facilities or professionals where imaging compatibility or instrument weight is a relevant consideration. Consequently, it offers an alternative to the stainless steel option without changing the instrument selection.
Both configurations are available through Sami’s Instruments. For specific material availability by instrument reference, please contact us directly.
Who Is This ACL Instrument Set For?
The ACL ToolBox is designed for qualified healthcare professionals — including orthopedic surgeons and surgical teams — working in hospitals, surgical centers, and other licensed clinical facilities. In particular, it suits settings where ACL reconstruction procedures are regularly performed and where a complete, organized ACL instrument set adds practical value.
Beyond the clinical setting, the set is also appropriate for:
- Medical device distributors and procurement professionals sourcing ACL surgical instrumentation
- Orthopedic surgical centers equipping their operating theaters
- Hospital supply departments sourcing a complete ACL instrument set
- Medical instrument importers and dealers
This product description does not constitute surgical instructions or medical guidance. Qualified professionals must use these instruments in accordance with applicable clinical standards and regulations.
ACL ToolBox for Professional Medical Instrumentation
The ACL ToolBox provides a professionally organized ACL instrument set that spans the main stages of ACL reconstruction. Rather than sourcing individual instruments separately, procurement teams and facilities can instead obtain a consolidated collection that covers tunnel preparation, guide placement, graft handling, fixation preparation, and accessory instruments within one set.
Moreover, Sami’s Instruments supplies the ACL ToolBox in both premium German stainless steel and titanium, and includes dedicated instrumentation cases with the set. As a result, the ACL ToolBox suits hospitals, orthopedic surgical centers, and professional instrument distributors that need a complete ACL instrumentation solution from a manufacturer with established experience in professional surgical instruments.
Why Choose Our ACL ToolBox?
- Complete instrument selection — the set covers the main instrument categories for ACL reconstruction, so facilities avoid sourcing items individually
- Multiple drill and reamer sizes — cannulated drills in 8 mm, 9 mm, 10 mm, and 11 mm provide size coverage within a single set
- Dual approach support — the set includes both transportal and transtibial femoral drill guides
- Comprehensive graft sizing — the graft sizing block covers 4.5 mm to 12 mm in 0.5 mm increments
- Material options — available in premium German stainless steel or titanium to suit facility and professional requirements
- Organized storage — supplied with dedicated instrumentation cases
- Manufactured by Sami’s Instruments — a Sialkot-based surgical instrument manufacturer with over 20 years of experience, ISO 13485 certified and CE marked, serving hospitals, distributors, and orthopedic centers worldwide
Frequently Asked Questions
What is included in the ACL ToolBox?
The ACL ToolBox contains 48 listed instrument references (SI-1452-01 to SI-1452-48). Specifically, these span cannulated drills, guide pin sleeves, femoral and tibial drill guides, ACL marking hooks and footprint guides, cutting guides, graft sizing instruments, taps, screwdriver instruments, tunnel preparation tools, accessory instruments, and instrumentation cases.
What materials are available?
Sami’s Instruments supplies the ACL ToolBox in premium German stainless steel and in titanium. Contact us to confirm availability of your preferred material configuration.
What sizes of cannulated drills does the set include?
The set includes cannulated drills in 8 mm, 9 mm, 10 mm, and 11 mm.
What ACL guide options does the set include?
The set includes ACL transportal guide offsets in 6 mm and 7 mm, transtibial femoral ACL drill guides in 6 mm and 7 mm, a tibial ACL drill guide, ACL marking hooks (left and right), ACL footprint guides (left and right), a femoral aimer, and a tibial aimer.
Does the set include graft sizing instruments?
Yes. The set includes a graft sizing block covering 4.5 mm to 12 mm in 0.5 mm increments. Additionally, it includes a tunnel measurement gauge, ligament graft tensioner, and graft passer.
Does the ACL ToolBox include an instrumentation case?
Yes. The set includes an ACL instrumentation case (SI-1452-34) and an instrument case (SI-1452-48). Contact us for details on the specific case configuration with your order.
Is the ACL ToolBox available in titanium?
Yes. In addition to the premium German stainless steel option, Sami’s Instruments offers a titanium instrument configuration. Contact us for availability and configuration details.
